CANchecked CBD08 CAN Bus Hub

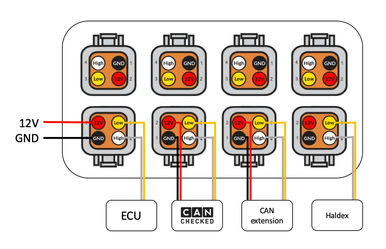

The CANchecked CBD08 is a compact (97mm x 47mm x 33mm) CAN bus hub featuring physical jumpers — no soldering required — for configuring 120-ohm terminating resistors and selecting between one 8-port CAN bus or two independent 4-port CAN buses. DTM04-4P sockets accept standard Deutsch DTM06-4S connectors for easy wiring. Weighs just 98 grams.

• 8 CAN bus ports — configurable as 1x8 or 2x4
• Physical jumper termination resistors (no soldering)
• Deutsch DTM connector sockets
• 5mm mounting screws included
• Compact 97mm x 47mm x 33mm, ~98g
