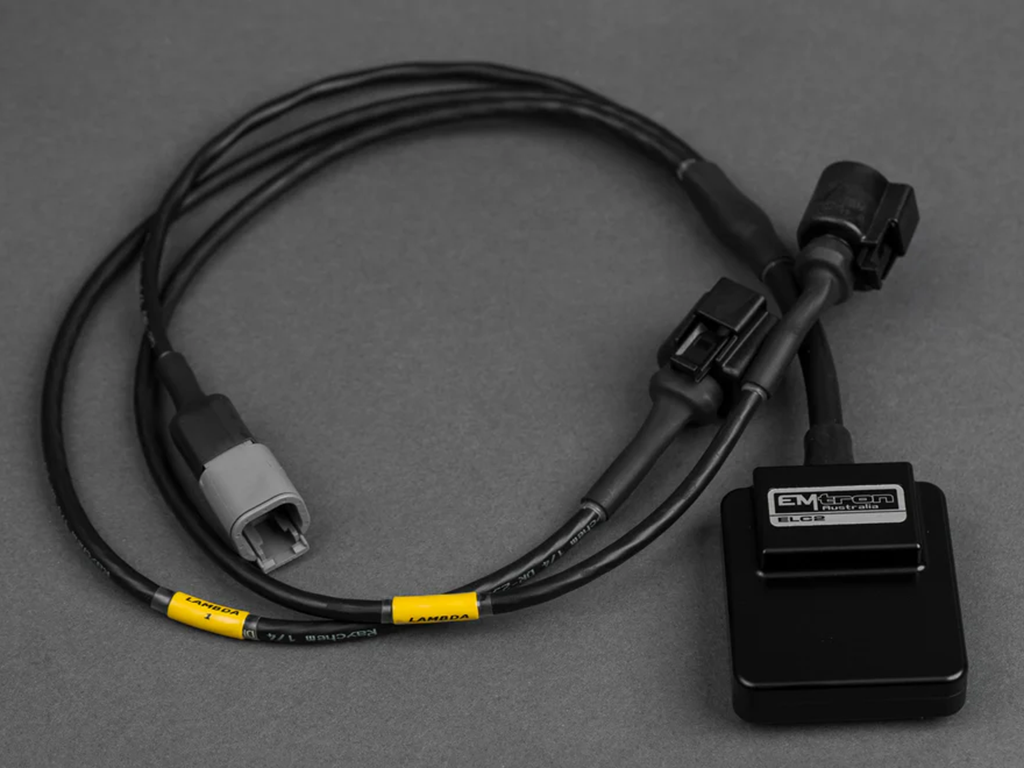

Emtron ELC2 Dual Channel CAN Lambda Controller

The Emtron ELC2 is a CAN bus-based dual channel wideband lambda controller designed specifically for use with Emtron ECUs and compatible motorsport systems.

• 6061 aluminium CNC billet enclosure
• DTM connector system for power and CAN bus
• 64MHz 16-bit automotive processor
• EMAP (exhaust manifold absolute pressure) pump current compensation
• Programmable from Emtune tuning software via CAN bus
• Plugs directly into Bosch LSU 4.9 wideband sensor
• Signal sample rate: 100Hz
• Signal resolution: 0.001 Lambda
• Dual channel — controls 2 x LSU4.9 sensors simultaneously
