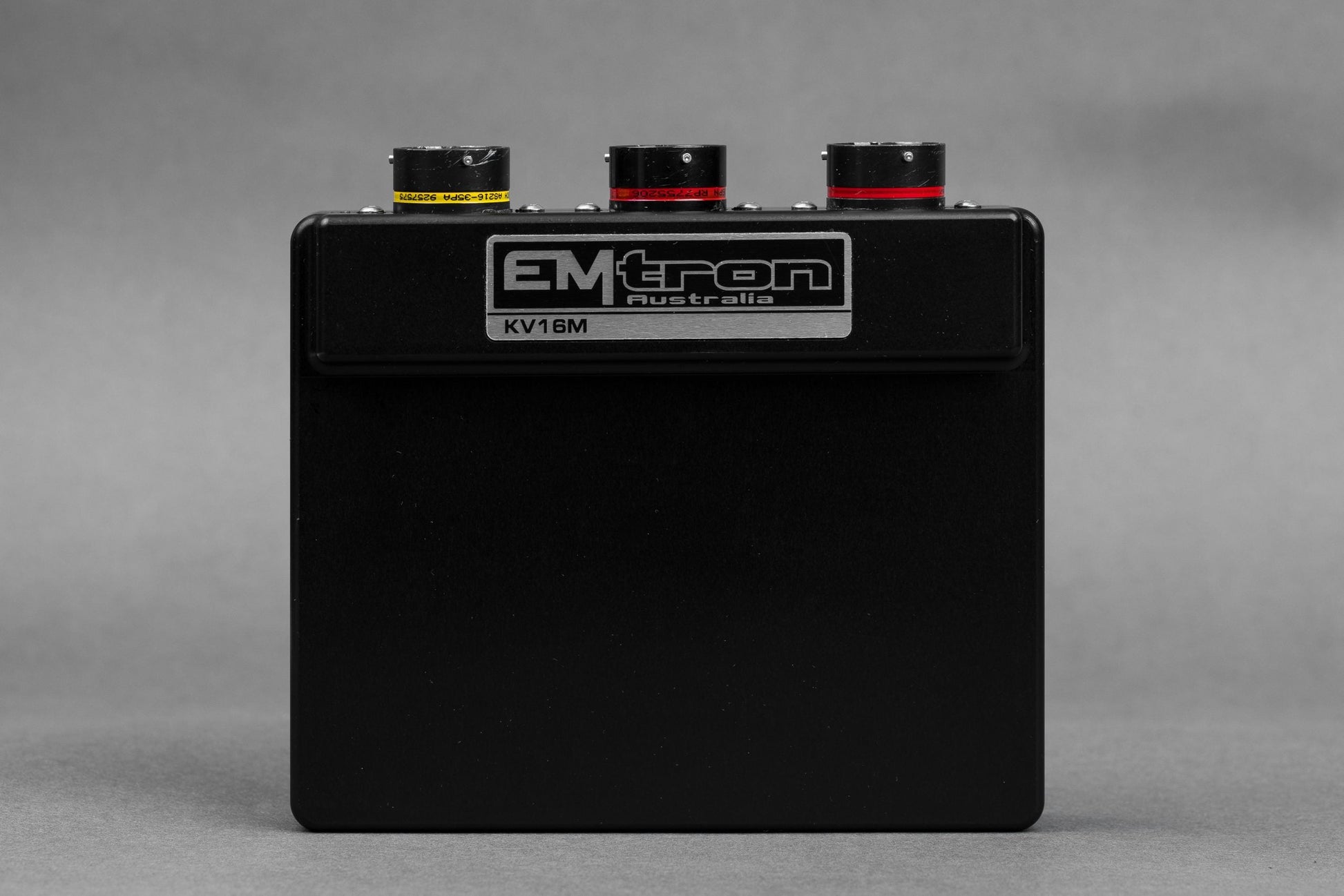

Emtron KV16M Motorsport Wire-In ECU

The Emtron KV16M is the pure motorsport variant of the KV16 platform, built for LMP and prototype endurance builds and GT programmes requiring mil-spec connector systems. It replaces the Super Seal connector system with a 136-way Deutsch Autosport (MIL-DTL-38999 Series III) circular connector — the standard used in purpose-built race harnesses. It also provides 24 analogue inputs and 14 digital inputs.

• 16 x Fuel Outputs (8 cylinders fully sequential staged injection)
• 12 x Ignition Outputs (fully sequential)
• Dual LSU4.9 Wideband Lambda Controllers (on-board)
• Drive By Wire (DBW) — up to 4 channels
• Dual digital knock control
• High-speed Ethernet communications
• 32MB on-board data logging + 4-channel oscilloscope
• 3-axis onboard G-force sensing
• 24 analogue inputs / 14 digital inputs
• 136-way Deutsch Autosport MIL-DTL-38999 connector system
• Requires EIC16M connector (not included)
• 6061 billet aluminium enclosure
